Hardness SHORE

Hardness tester Shore

Shore durometer are based on international standards for the hardness measurement of rubber, plastics and other non-metallic materials (ISO, ASTM, DIN, BS, NFT etc.).
Hardness is the resistance against the indentation of a known geometrical indentor with determined force into a sample. The indentation depth is measured and displayed analogically or digitally.

The indentor is 2.5 mm away from the contact surface at zero durometer reading. Therefore you can only measure samples with a thickness of 6 mm or more (durometer A) or you can stack 3 samples with 2 mm thickness each to 6 mm total.
If the samples are thinner than the recommended thickness you are measuring the hardness of the underlying surface (support table or workbench). This will give a false reading due to the "anvil effect".


Shore TYPE
Main spring
Contact force
Indentor shape
Measuring way
Material thickness
Measuring range
Norm
Application
A
8,065 N
822 gramme (100 Shore)
12,5 N
35°
2,5 mm
> 6 mm
2+2+2 = 6 mm
10 - 90
10 -90
< 20 Shore D
ISO 7619-1
ASTM D 2240
IS0 868
Soft rubber, pastics & elastomers.
D
44,50 N
4536 gramme (100 Shore)
50,0 N
30°
2,5 mm
> 6 mm
2+2+2 = 6 mm
30 - 90
10 - 90
> 90 Shore A
ISO 7619-1
ASTM D 2240
IS0 868
Hard rubber, thermoplsatics
AO
8,065 N
822 gramme (100 Shore
1000 g
Ø 5 mm
2,5 mm
> 6 mm
< 20 Shore A
ISO 7619-1
Foams, steering wheel, upholstery of automotive interiors
B
8,065 N
822 gramme (100 Shore)
12,5 N
30°
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Harder elastomers and plastics that shore A
C
44,50 N
4536 gramme (100 Shore)
50,0 N
35°
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Medium hard elastomers
DO
44,50 N
4536 gramme (100 Shore)
50,0 N
3/32"
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Dense granular material, textile winding
O
8,065 N
822 gramme (100 Shore)
12,5 N
3/32"
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Very soft elastomers, textile winding bellow  20 Shore A.
OO
1,10853N
113 gramme
(100 Shore)
3,924 N
3/32"
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Ligth foams, sponge rubber gels, human tissue.
OOO
1,10853N
113 gramme
(100 Shore)

1/2"
2,5 mm
> 6 mm
10 - 90
ASTM D 2240
Gels, foam and rubber foam very soft
M


30°
1,25 mm
>1.27 mm

ASTM D 2240
Thin material
RR
13.832N
1410 gramme
(100 Shore)

1/2"



no norm
Fiber panels, artificial brick
CF
89 N
9072 gramme (100 Shore

1/2"



no norm
Foam padding
Barcol


26°
Ø 0.157
0,76 mm

0 - 100
ASTM D 2583
Composite, plastic reinforced fiberglass, thermoplastic acrylic glass, resopal, vinyl, acetate of cellulose, Tin, aluminum

Creep: if the durometer is maintained with constant pressure on the sample, the specified hardness will decrease with time: the penetrator tends to continue to penetrate into the material. This phenomenon called creep varies from material to another, but requires more rigour to the extent that it is important: measurement of the hardness after a well-defined time after the application of the load interval, maximum indicator...

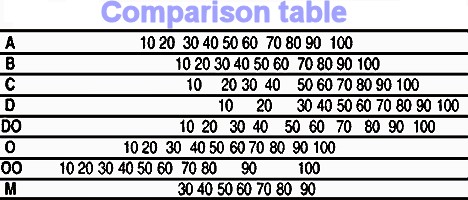

Indicative table, do not use as conversion table
