Bench marking laser 20 W pro, 100x100 mm

Bench marking laser 20 W pro, 100x100 mm
Bench marking laser 20 W pro, 100x100 mm
Bench marking laser 20 W pro, 100x100 mm
Bench marking laser 20 W pro, 100x100 mm
Bench marking laser 20 W pro, 100x100 mm
Bench marking laser 20 W pro, 100x100 mm
Article code:  BENCH-20 W pro
0 star(s) in 0 review(s) Write a review

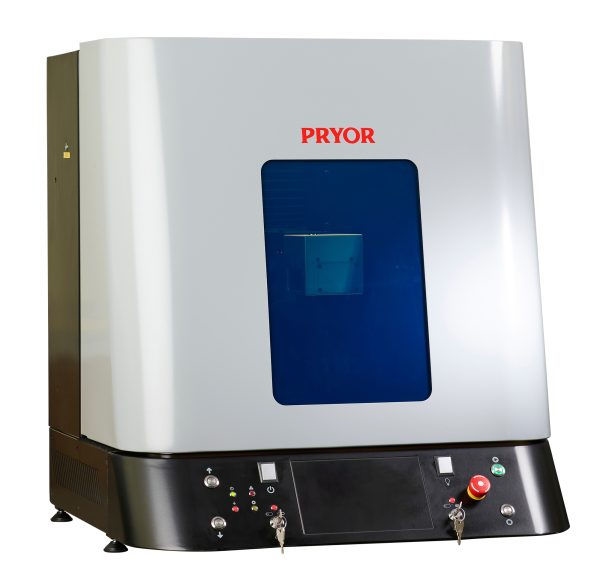

Pryor's new laser bench is our entry level laser marking machine which can be used in different industries for many common marking and traceability applications including laser engraving.
The new machine is based on our predecessor but with a number of key improvements and advancements that make it one of the most capable entry level laser marking machines available today.
The Pro 20W Laser system has been a go-to product for specialist marking requirements and materials. The Pro offers the greatest mark variability with a frequency range of 1.2kHz to 1MHz. This flexibility allows our customers to utilise the Pro for deep, clean engraving as well as super high frequency surface marking and colouration. The wider laser frequency range and variable pulse width provide a greater success when marking uncommon materials, such as plastics.
  • supplied with our latest traceability software and with the option to add a touch screen controller to operate the laser and create a simple layout
  • the fully automatic vertical door is standard across the range

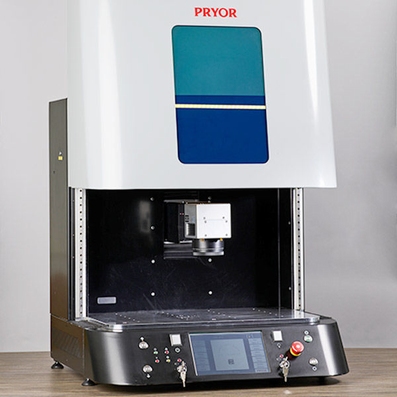

  • larger internal area for marking large parts
  • automatic Z axis control
  • "pilot" beam to facilitate the placement of marks
  • class 1 laser, manufactured in the UK at our head office in Sheffield.

Technical data
  • pulse energy: 1 mJ
  • average power: 20 W
  • beam quality M2: 2.0
  • polarization: random
  • power range: 10% to 100%
  • pulse duration @ 20KHz: 1.5, 2.5, 4, 8, 16, 30, 50, 120, 200, 350 ms
  • repetition rate: 2 KHz to 4000 KHz
  • long-term power stability: 5%
  • operating temperature: 0 to 42°C
  • cooling: active air cooling
  • fiber optic: 2.5 meters
  • power: less than 200W – 110 or 220 VAC
  • average diode life exceeds 50,000 hours
  • emergency stop
  • interlocked safety switches
  • vertical door with viewing window
  • integrated controller
  • internal light
  • dimensions (hxwxd): 760/1160x710x750 mm
  • warranty: 2 years as standard
Options & accessories

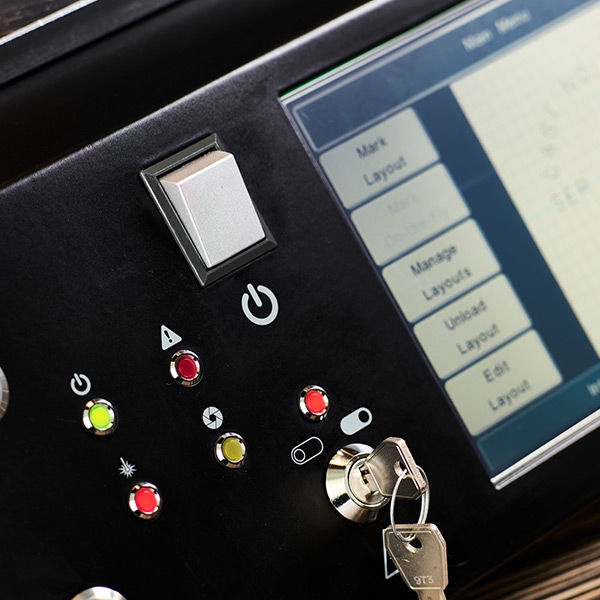

  • integrated touchscreen for stand-alone
  • usemarking surfaces:
    * FT100 focal length 110 mm – marking window 60 x 60mm
    * FT150 focal length 173 mm – marking window 100 x 100mm
    * FT254 focal length 254 mm – marking window 150 x 150mm
  • fixing table for labels
  • automatic label feeders
  • rotating axis
  • fume extraction
  • protective glasses
