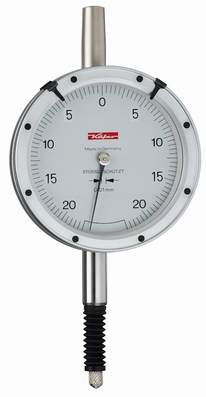

Mechanical dial gauge SI-45 W, 0.4/4.5/0.01 mm, Ø40 mm

Error free dial gauge, waterproof & shockproof

Mechanical dial gauge SI-45 W, 0.4/4.5/0.01 mm, Ø40 mm
€ 113.00 *Prices are exclusive of VAT
Article code:  10140
0 star(s) in 0 review(s) Write a review
  • Error free dial gauge: in order to avoid reading errors the measuring range of these dial gauges is limited to slightly less than one revolution of the pointer. Therefore a measurement can only be performed within the range of one revolution of the hand guaranteeing error free reading of the dial gauge.
  • Shockproof: the high-class impact protection of the dial gauge results in an exceptionally long service life. A gear rack sleeve covering the length of the spindle is arranged and sprung in such a way that the shocks against the measuring insert are not transferred to the measuring gear. The dial gauge is robust in operation. Its precision is maintained with practically no limitations.
  • Waterproof: IP67

  • reading: 0.01 mm
  • overtravel: 4.5 mm
  • range: 0.4 mm
  • graduation: 20~0~20
  • initial measuring force: 1 N
  • Ø bezel: 40 mm
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP67
  • dimensions: according to DIN EN ISO 463
  • accuracy: according to DIN 878
  • weight: 134 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate

Option

Lug back horizontal for dial gauges Ø40 mm, bore Ø5 mm

Lug back horizontal for dial gauges Ø40 mm, bore Ø5 mm
For waterproof dial gage W

€ 31.00
Factory certificate DIN 878 dial gauge, 0.01 mm, >5~10 mm

Factory certificate DIN 878 dial gauge, 0.01 mm, >5~10 mm
Option

€ 15.00
Vertical prism back for waterproof dial gauges W Ø40 mm

Vertical prism back for waterproof dial gauges W Ø40 mm
Accessorie

€ 31.00
Horizontal prism back for waterproof dial gauges W Ø40 mm

Horizontal prism back for waterproof dial gauges W Ø40 mm
Accessorie

€ 31.00
Lug back vertical for dial gauges Ø40 mm, bore Ø5 mm

Lug back vertical for dial gauges Ø40 mm, bore Ø5 mm
For waterproof dial gage W

€ 31.00
