Universal micrometer D with movable anvil 50~75 mm

Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
Universal micrometer D with movable anvil 50~75 mm
€ 457.00 € 295.00 *Prices are exclusive of VAT
Article code:  302.142.D
0 star(s) in 0 review(s) Write a review

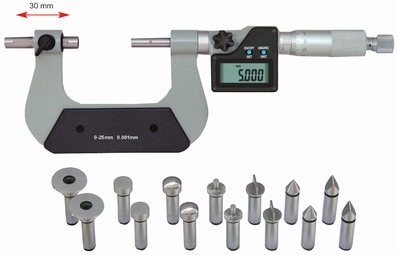

  • anvil moveable by 30 mm

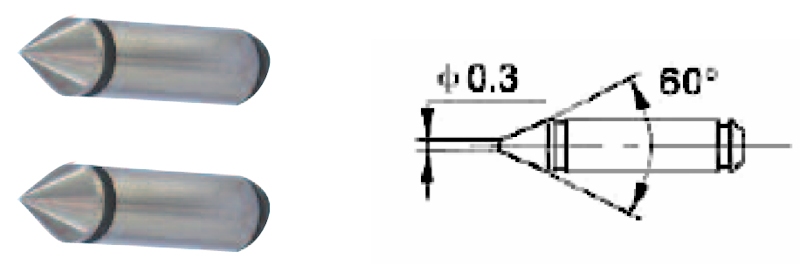

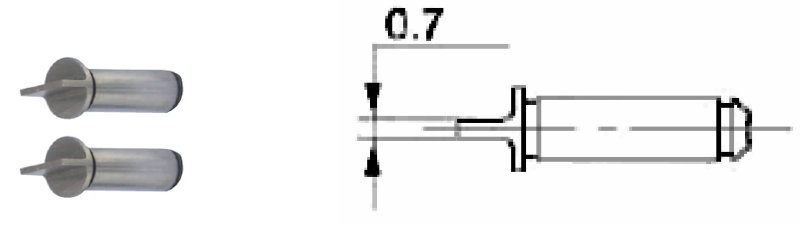

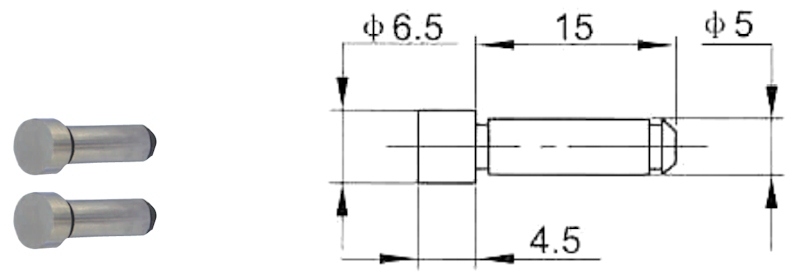

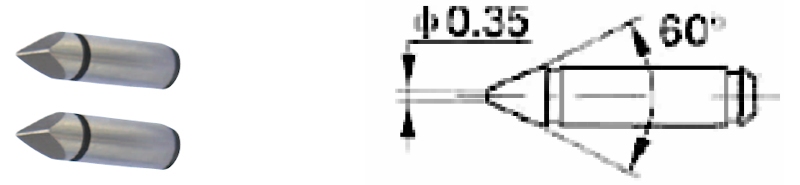

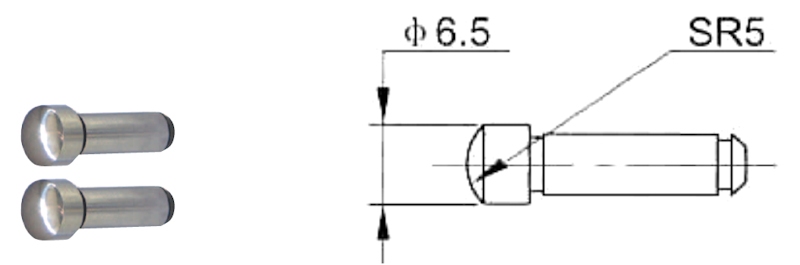

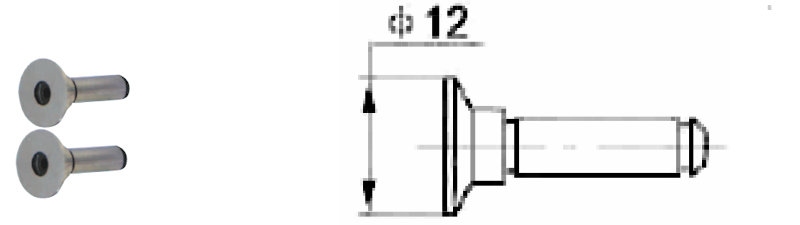

  • with 7 pair interchangeable inserts, ø 5 mm
  • measuring range: 50~75 mm
  • resolution: 0.001 mm
  • accuracy: 0.010 mm
  • 1 revolution of the thimble = 0.5 mm
  • rotating spindle Ø 6.5 mm
  • functions: On/Off, ABS/INC & SET
  • data output RB4.1
  • power supply: 1 battery 1.5 V LR 44
  • frame coated, thimble chrome finished
  • locking lever
  • ratchet thimble
  • thermally insulated
  • delivered in case/box with adjustment key & setting standard

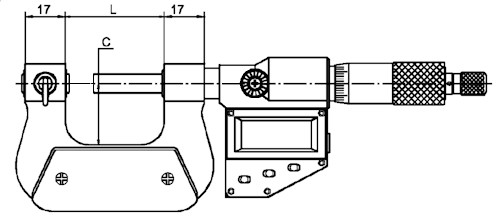

  • dimensions: C=62, L=118 mm

Option & accessoire
  • calibration certificate VDI/VDE/DGQ 2618 from a DAkkS' labo
  • USB interface with program and connection cable for RB4.1 (220.272)
  • pair ball inserts for measuring of gear (309.18x)

Option & accessories

Micrometer holder => 100 mm

Micrometer holder => 100 mm

€ 37.60 € 25.00
Micrometer holder => 300 mm

Micrometer holder => 300 mm

€ 30.40 € 20.00
Micrometer holder => 200 mm

Micrometer holder => 200 mm

€ 48.60 € 32.00
VDI/VDE/DGQ certificate for special micrometers => 50 mm

VDI/VDE/DGQ certificate for special micrometers => 50 mm

€ 23.50
Pair of disc inserts Ø 25 mm, shaft Ø 5 mm

Pair of disc inserts Ø 25 mm, shaft Ø 5 mm

€ 0.00
Pair gear inserts, shaft Ø 5 mm, Ø1.5 mm, M 0.9~1.0

Pair gear inserts, shaft Ø 5 mm, Ø1.5 mm, M 0.9~1.0

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø1 mm, M 0.6~0.65

Pair gear inserts, shaft Ø 5 mm, Ø1 mm, M 0.6~0.65

€ 83.70 € 54.00

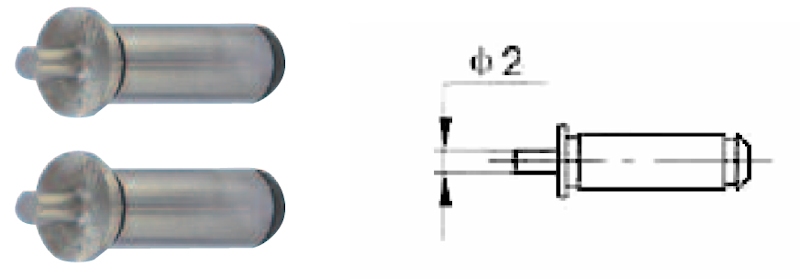

Pair gear inserts, shaft Ø 5 mm, Ø2 mm, M 1.25

Pair gear inserts, shaft Ø 5 mm, Ø2 mm, M 1.25

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø2.5 mm, M 1.5

Pair gear inserts, shaft Ø 5 mm, Ø2.5 mm, M 1.5

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø3 mm, M 1.75

Pair gear inserts, shaft Ø 5 mm, Ø3 mm, M 1.75

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø3.5 mm, M 2

Pair gear inserts, shaft Ø 5 mm, Ø3.5 mm, M 2

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø4 mm, M 2.25

Pair gear inserts, shaft Ø 5 mm, Ø4 mm, M 2.25

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø4.5 mm, M 2.5

Pair gear inserts, shaft Ø 5 mm, Ø4.5 mm, M 2.5

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø5 mm, M 2.75

Pair gear inserts, shaft Ø 5 mm, Ø5 mm, M 2.75

€ 83.70 € 54.00
Pair gear inserts, shaft Ø 5 mm, Ø6 mm, M 3.5

Pair gear inserts, shaft Ø 5 mm, Ø6 mm, M 3.5

€ 83.70 € 54.00
