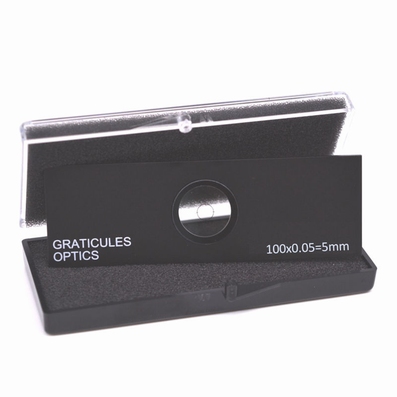

Stage micrometer transmitted light S2, 5/0.05 mm

Stage micrometer transmitted light S2, 5/0.05 mm
Stage micrometer transmitted light S2, 5/0.05 mm
Stage micrometer transmitted light S2, 5/0.05 mm
€ 176.00 *Prices are exclusive of VAT
Manufacturer:  Graticules Optics
Article code:  02A00401
0 star(s) in 0 review(s) Write a review
  • transmitted light calibration slide

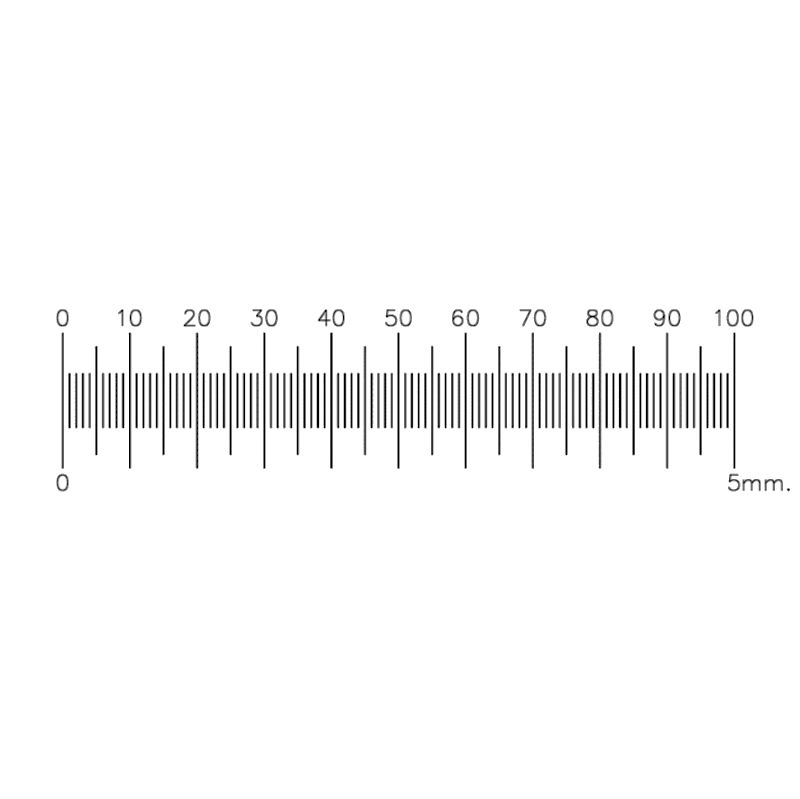

  • 5 mm length scale subdivided into 100 divisions (0.05 mm)
  • line thickness: 0.005 mm +/-0.001mm
  • scale length tolerance: +/-0.0015 mm
  • divisional marker lengths: 1.0./0.8/0.4 mm
  • glass type and thickness: B270 1 mm thick
  • orientation: correct on top surface
  • black anodised aluminium slide
  • dimensions 76x25x1.5 mm
  • delivered in a plastic case
