Manufacturer KERN
Article codeKFP 1500V20SNM
  • weighing range: 1.500 kg
  • readout: 500 g
  • verification value (e): 500 g
  • minimum load for verified scales: 10 kg

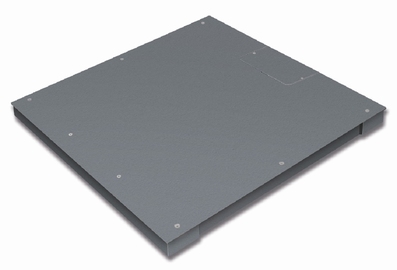

  • dimensions of weighing WxDxH 1000x1000x80 mm
  • weighing bridge with non-slip steel chequer plate, lacquered and screwed onto the structure to facilitate the installation and the access for maintenance
  • load cell steel, silicone-coated, IP67 protection
  • easy access to the junction box from the top
  • comfortable adjustment of the weighing bridge from above
  • cable length: 5 m
  • net weight approx. 105 kg
  • warranty 3 years

Remarks for verified scales: the weighing bridge must be fixed to the floor. Optionally, with an access ramp or a footplate pair
In stock
Accessories
  • pair of base plates to fix the weighing bridge to the floor, BFS-A06 (option)

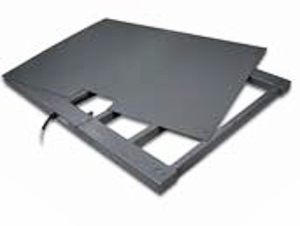

  • stable pit frame to install the weighing bridge so you can drive straight on, WxDxH 1085x1085 mm, BFS-A03 (option)

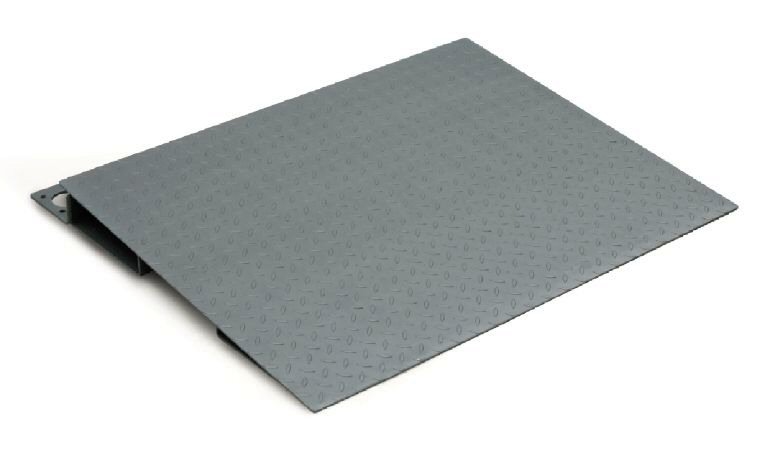

  • ascending ramp including fixing board between weighing bridge and ascending ramp, 1000x750 mm, BFS-A01 (option)
  • cable with special length 15 m between display device and platform, must be ordered at purchase, BFB-A03 (option)
