content="14/09/2022″/> Weighing plate KFPV20,IP67, 3000kg/1kg, 1500x1250x90 mm (M)

Weighing plate KFPV20,IP67, 3000kg/1kg, 1500x1250x90 mm (M)

Shipping costs not included

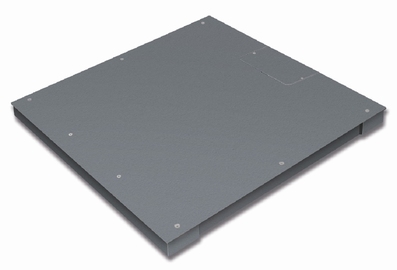

Weighing plate KFPV20,IP67,  3000kg/1kg, 1500x1250x90 mm (M)
Weighing plate KFPV20,IP67,  3000kg/1kg, 1500x1250x90 mm (M)
Weighing plate KFPV20,IP67,  3000kg/1kg, 1500x1250x90 mm (M)
Weighing plate KFPV20,IP67,  3000kg/1kg, 1500x1250x90 mm (M)
Weighing plate KFPV20,IP67,  3000kg/1kg, 1500x1250x90 mm (M)
€ 2,250.00 2,050.00 *Prices are exclusive of VAT
Manufacturer KERN
Article codeKFP 3000V20NM
  • weighing range: 3.000 kg
  • readout: 1 kg
  • verification value (e): 1 kg
  • minimum load for verified scales: 20 kg
  • dimensions of weighing WxDxH 1500x1250x90 mm
  • weighing bridge with non-slip steel chequer plate, lacquered and screwed onto the structure to facilitate the installation and the access for maintenance
  • load cell steel, silicone-coated, IP67 protection
  • easy access to the junction box from the top
  • comfortable adjustment of the weighing bridge from above
  • cable length: 5 m
  • net weight approx. 135 kg
  • warranty 3 years

Remarks for verified scales: the weighing bridge must be fixed to the floor. Optionally, with an access ramp or a footplate pair
In stock
Accessories
  • pair of base plates to fix the weighing bridge to the floor, BFS-A06 (option)

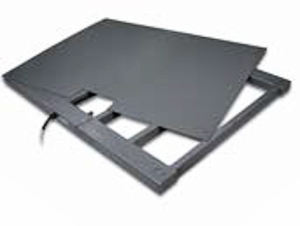

  • stable pit frame to install the weighing bridge so you can drive straight on, WxDxH 1335x1585 mm, BFS-A04 (option)

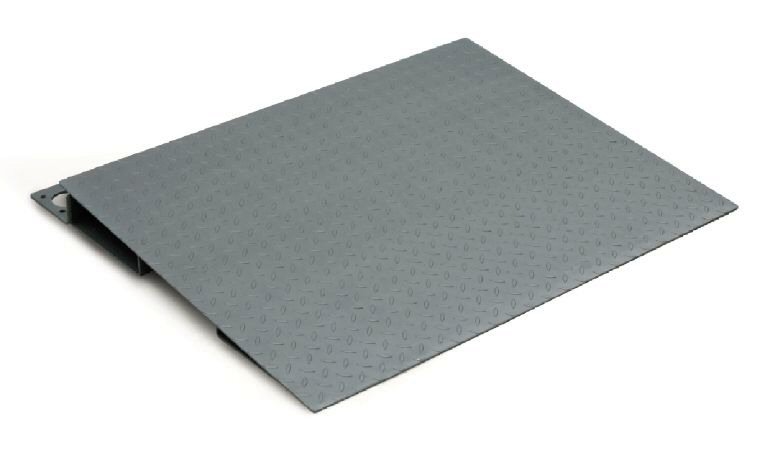

  • ascending ramp including fixing board between weighing bridge and ascending ramp, 1250x750 mm, BFS-A02 (option)
  • cable with special length 15 m between display device and platform, must be ordered at purchase, BFB-A03 (option)
