Hot mounting press IPA Evolution TI Ø40 mm

With interchangeable embedding molds

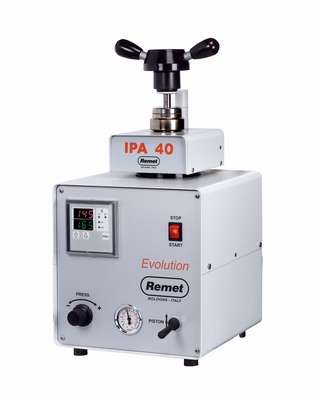

Hot mounting press IPA Evolution TI Ø40 mm
5,330.00 *Prices are exclusive of VAT
Manufacturer REMET sas
Article codeIPATI.05
Thanks to the possibility of quickly changing the mould assembly, this Evolution model makes it possible to produce mounting of different diameters.
Most hot enrobing machines are used for a fixed diameter of 25 to 40 mm (1 "~ 1" 1/2) for embedding with phenolic resin or other resins that do not require high pressures (=> not suitable for transparent resins).
The Evolution series has been developed to offer an economical, simple, compact and automatic hot enrobing machine optimized for this type of application:
  • µprocessor embedding press & pneumatic cylinder for coated samples from Ø 25 to 40 mm (1 "~ 1" 1/2).
  • fully automatic cycle.
  • digital microprocessor temperature controller programmer with temperature and heating time and cooling temperature adjustment.
  • regulation of the compression force by valve with indication of the pressure by manometer.
  • manual control of piston displacement, pressurization - discharge by control lever (displacement speed proportional to the position of the lever).
  • use of thermosetting and thermoplastic resins.
  • oil-free pneumatic cylinder.
  • hardened and polished special steel cylinder.
  • easy to use and secure screw cap with rotating cap holder (no drop).
  • heating by electric resistances with temperature probe for measurement and regulation.
  • water cooling with control by solenoid valve controlled by the programmer.
  • independent adjustment of heating and cooling temperatures for optimal and reproducible coating conditions.
  • automatic cycle stop when the cooling temperature is reached (optimizes the cooling time and reduces the heating time during the next cycle).
  • audible signal at the end of the cycle.
  • main body and steel sheets with baked paint.

Technical characteristics
  • Ø mounting: 40 mm
  • power: 700 W
  • max temperature: 200 ° C
  • heating time: 0~60 min
  • cooling temperature: adjustable
  • power supply: 230 Vac 50~60 Hz
  • air supply: 5 to 8 bar
  • dimensions (WxDxH): 225x480x680 mm
  • weight: 25 kg

Accessories supplied with the machine
  • mold assembly Ø 40 mm
  • 1 box of 1 kg of black phenolic resin.
  • 1 box of 1 kg of red phenolic resin.
  • 1 spoon for the dosage of resins.
  • user manual and CE certificate
