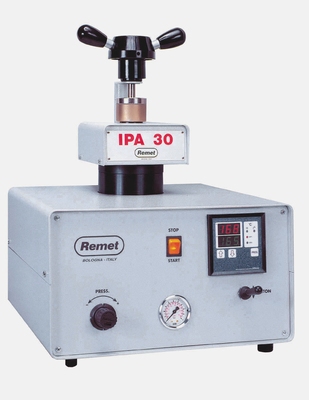

Hot mounting press IPA without heating cylinder

Hot mounting press IPA without heating cylinder
4,736.00 *Prices are exclusive of VAT
Manufacturer REMET sas
Article codeIPATI.01
This model comes without an inbedding head.
In versions with interchangeable embedding molds, the outside diameter of the embedding cylinder is constant regardless of the embedding diameter: the smaller the embedding diameter tightened, the greater the wall thickness of the cylinder. In addition, at each change of diameter, the thermal coupling of the coating cylinder with the heating/cooling body must be optimized by means of a coupling paste.
With this model, to change the coating diameter, the complete head is changed, which allows for the optimum coating cylinder wall thickness. This solution therefore offers the advantages of reducing the thermal inertia of the embedding cylinder and avoiding coupling paste problems.
Fully automatic cycle mounting press which differs from the Evolution version by a larger pneumatic cylinder in order to achieve higher forces/pressures for large diameters or for coating with any type of thermosetting or thermoplastic resin including transparent.
The entire work cycle is managed by an easily programmable microprocessor. The wide range of machines meets all the needs of the metallurgical laboratory.
The displacement of the double-acting pneumatic cylinder is provided by compressed air (generally available in a metallography laboratory: if this is not the case, see the hydraulic IPA models)
  • µprocessor embedding press & pneumatic cylinder for mounting samples Ø 30~60 mm
  • fully automatic cycle.
  • digital microprocessor temperature controller programmer with temperature and heating time and cooling temperature adjustment.
  • regulation of the compression force by valve with indication of the pressure by manometer.
  • manual control of piston displacement, pressurization - discharge by control lever (displacement speed proportional to the position of the lever).
  • use of thermosetting and thermoplastic resins.
  • oil-free pneumatic cylinder.
  • independent adjustment of heating and cooling temperatures for optimal and reproducible coating conditions.
  • automatic cycle stop when the cooling temperature is reached (optimizes the cooling time and reduces the heating time during the next cycle).
  • audible signal at the end of the cycle.
  • main body and steel sheets with baked paint.

Technical characteristics
  • max temperature: 200 ° C
  • heating time: 0~60 min
  • cooling temperature: adjustable
  • power supply: 230 Vac 50~60 Hz
  • air supply: 5 to 8 bar
  • dimensions (WxDxH): 225x480x680 mm
  • weight: 38 kg

Accessories supplied with the machine
  • 1 box of 1 kg of black phenolic resin.
  • 1 box of 1 kg of red phenolic resin.
  • 1 spoon for the dosage of resins.
  • user manual and CE certificate
