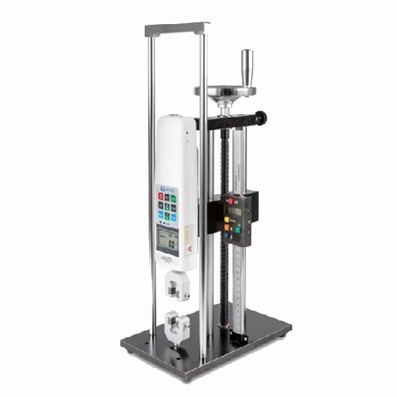

Manual test bank TVL 500N complete with 2 clamps

€ 1,380.00 € 1,171.00 *Prices are exclusive of VAT

Manufacturer: SAUTER GmbH
Article code: TVL 500FHS71

0 star(s) in 0 review(s) Write a review

all-in-one: test bench with digital dynamometer and 2 clamps
for manual testing with a spindle pitch of 3 mm/rotation and for forces up to 500 N
no need to assemble or configure parts, saving time and money
for testing tensile and compressive forces

Technical characteristics

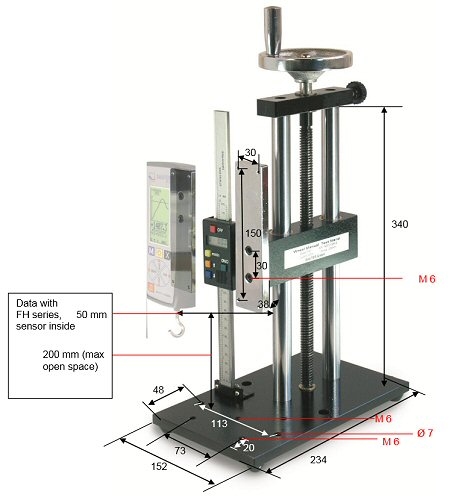

Test bench

Digital force gauge FH 500 N, 0.1 N

for push and pull forces
measuring range: 0~500 N
readout: 0,1 N
accuracy: 0.5 % of Fmax
speed of measurement: 2.000 Hz
overload protection: 1.5 x Fmax
secure operability due to ergonomic design
selectable measuring units: N, lb, kg
rotating display with backlight
real time or Peak Hold & Auto Peak Hold mode to observe transient values or capture peaks
function to set limits: programmable high / low setpoints for go/no-go testing. Light and sound signal output:
* ideal mode for efficient and accurate testing of standard parts
* can stop a motorized displacement of a traction bench (with accessory AFH-02)
internal memory up to 10 values
mini statistics: calculates the average result from up to ten stored single results, min., max., n
digital output: RS232
power supply: rechargeable batteries and external power supply 240 Vac (included)
permissible ambient temperature: 10°~ 30°C
weight: 640 g (with case 1.9 kg)
dimensions (WxDxH): 66x35x230 mm

Clamp AE 500

high-quality screw-in tension clamp in the lower force range with enormous flexibility so that they can be adapted quickly to the most varied test objects
solid version for high clamp forces
overall dimensions: 51×41×15 mm
flexible range (width between the jaws) 0–10 mm
jaws with pyramid grip standard, WxH 32×20 mm
with the practical threaded rods with internal hex, the clamps can be quickly adapted to meet particular requirements, test objects, operational environments, e.g. test bench or measuring device, etc.
for tension and compression testing up to 500 N
overload protection: 150 % of [Max]
scope of delivery: 2 clamp with 2x 2 jaws with pyramid grip
