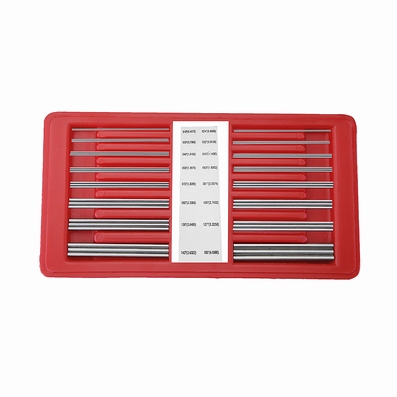

Set of 3x16 cylindrical gauges for thread control

Set of 3x16 cylindrical gauges for thread control
Set of 3x16 cylindrical gauges for thread control
Set of 3x16 cylindrical gauges for thread control
€ 91.50 € 59.00 *Prices are exclusive of VAT
Article code:  318.510
0 star(s) in 0 review(s) Write a review

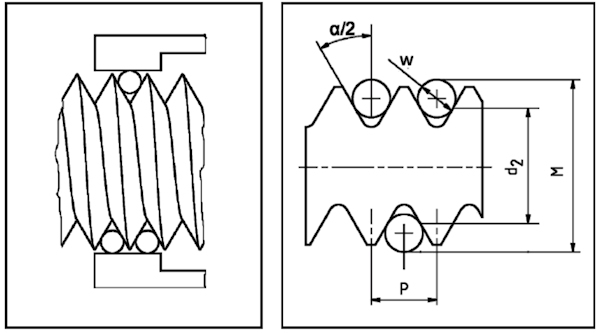

  • for measuring of thread (not thread gauge!)
  • 3x16 pieces, mm/in:  0,4572/0,018”, 0,6096/0,024”, 0,7366/0,029”, 0,8128/0,032”, 1,0160/0,040”, 1,1430/0,045”, 1,3970/0,055”, 1,6002/0,063”, 1,8288/0,072”, 2,0574/0,081”, 2,3368/0,092”, 2,7432/0,108”, 3,0480/0,120”, 3,2258/0,127”, 3,6322/0,143”, 4,6990/0,185”
  • for thread pitch 0 ,5~6 mm, metric 60 ° and 3~48 TPI, U.S. 60 °
  • 70 mm long,
  • 3 pcs. each size
  • accuracy: ± 0,004 mm
  • in case/box

Conversion table metric 60°
Conversion table US 60°
Pitch mm
Wire mm
Constant C mm
Pitch in
Wire in
Constant C in
0,5
0,4572
0,9386
48
0,018
0,03596
0,6
0,4572
0,8520
44
0,018
0,03432
0,7
0,4572
0,7654
40
0,018
0,03235
0,75
0,4572
0,7221
36
0,018
0,02994
0,8
0,6096
1,1360
32
0,024
0,04494
1,0
0,6096
0,9628
28
0,024
0,04107
1,25
0,7366
1,1273
27
0,024
0,03993
1,5
1,0160
1,7490
24
0,029
0,05092
1,75
1,0160
1,5324
20
0,029
0,04370
2,0
1,1430
1,6969
18
0,032
0,04789
2,5
1,3970
2,0259
16
0,040
0,06587
3,0
1,6002
2,2025
14
0,040
0,05814
3,5
2,0574
3,1411
13
0,045
0,06838
4,0
2,3368
3,5463
12
0,055
0,09283
4,5
2,7432
4,3325
11½
0,055
0,08969
5,0
2,7432
3,8995
11
0,055
0,08627
5,5
3,0480
4,3808
10
0,055
0,07840
6,0
3,2258
4,4812
9
0,063
0,09277



8
0,072
0,10775



7½
0,081
0,12753



7
0,081
0,11928



6
0,092
0,13166



5½
0,108
0,16654



5
0,120
0,18679



4½
0,127
0,18855



4
0,143
0,21249



3½
0,185
0,30756



3
0,185
0,26632
