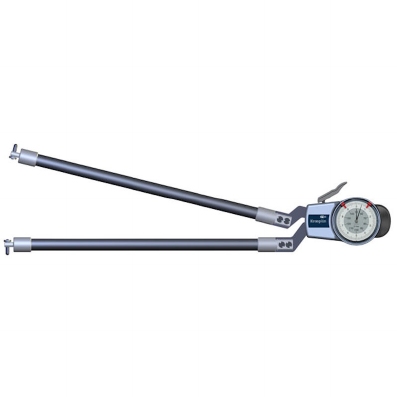

Inside measurement by arm H850, 50~150/0,1/395 mm

Inside measurement by arm H850, 50~150/0,1/395 mm
Inside measurement by arm H850, 50~150/0,1/395 mm
Inside measurement by arm H850, 50~150/0,1/395 mm
€ 965.00 *Prices are exclusive of VAT
Article code:  H850
0 star(s) in 0 review(s) Write a review
  • measuring range: 50~150 mm
  • measuring range: 100 mm
  • mechanical stroke: 49.5~150.5 mm
  • resolution: 0.1 mm
  • max. permissible errors G: ± 0.15 mm
  • repeatability: 0.01 mm
  • measuring force: 0.8~2.0 N

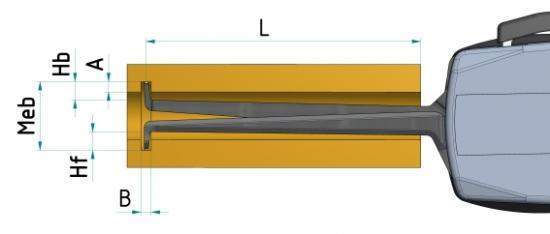

  • measuring depth: Lmax = 395 mm
  • type of measuring contact: carbide ball Ø 4.0 mm
  • measurement tip movable Hb / fixed Hf: 4.0/4.0 mm
  • measuring arm width: 16/20 mm
  • protection level: IP65
  • adjustable tolerance marks
  • reference temperature: 20°C
  • working temperature: 10~30°C
  • weight: 590 g

Accessory
  • wooden box: 1732-53
  • support unit: -
