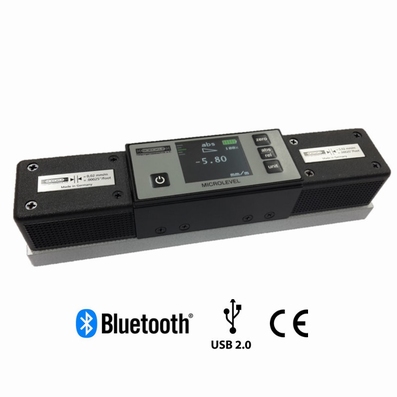

Digital clinometers MICROLEVEL, 200 mm, 0.005 mm/m

€ 3,090.00 *Prices are exclusive of VAT

Article code: 5025/200/KK

0 star(s) in 0 review(s) Write a review

Features

Technical specifications

Digit step 5 µm at unit "mm/m"
Digit step 1 µm at unit "mm/200mm" (Suitable for flatness measurements, since the length of the spirit level is 200 mm and does not need to be converted)
Measuring range: +/- 15 degrees (+/- 261 mm/m)
Error limit according to DIN 2276-2: fmax = 0.04% of MW, min. 0.01% of ME
(ME = measuring range end value, MW = measuring value, fmax = maximum error limit)
Drift: 0.05% / hr of ME
Temperature coefficient: 0.1% of ME per ° C
Working temperature: 20 ° C +/- 5K
Storage temperature: from -30 ° C to + 70 ° C
Dimensions (LxWxH): 200x42x47 mm
Weight without case: 1,24 kg
Weight within case: 1,78 kg
Li-ion battery 10h operating time
Measuring surface fine grinding max. 5μ
CE-compliant and EMC tested
According to DIN 877 and DIN 2276-2

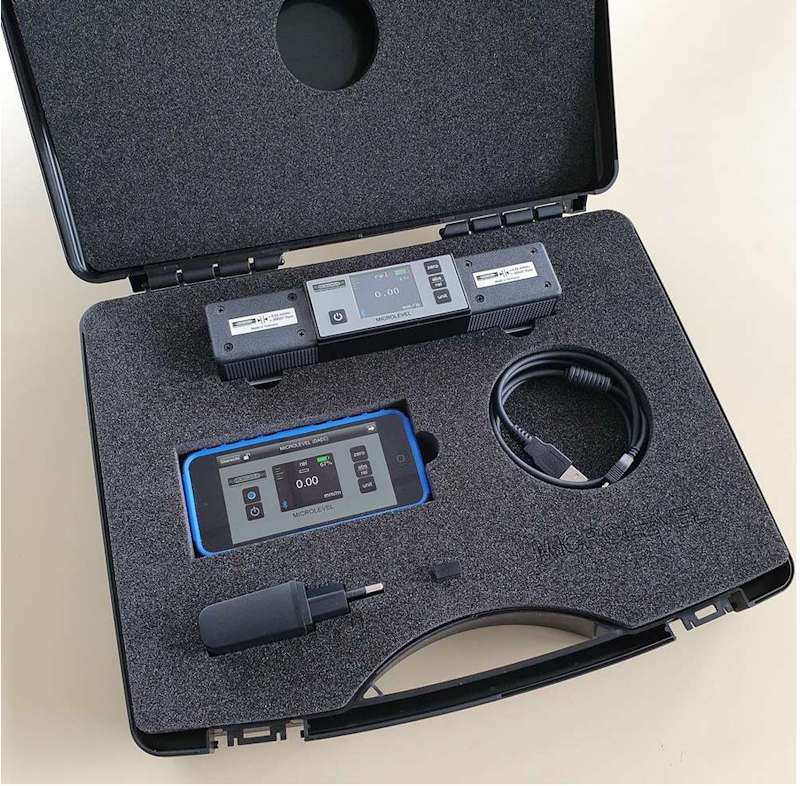

Supplied in a padded plastic case (included) with remote display MICROLEVEL-Meter
