Stage micrometer transmitted light S1, 10/0.1 mm

Stage micrometer transmitted light S1, 10/0.1 mm
Stage micrometer transmitted light S1, 10/0.1 mm
Stage micrometer transmitted light S1, 10/0.1 mm
€ 155.00 *Prices are exclusive of VAT
Manufacturer:  Graticules Optics
Article code:  02A00400
0 star(s) in 0 review(s) Write a review

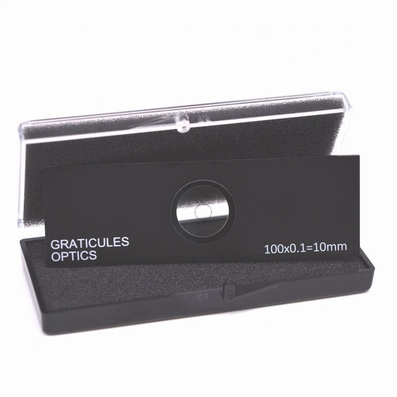

  • transmitted light calibration slide

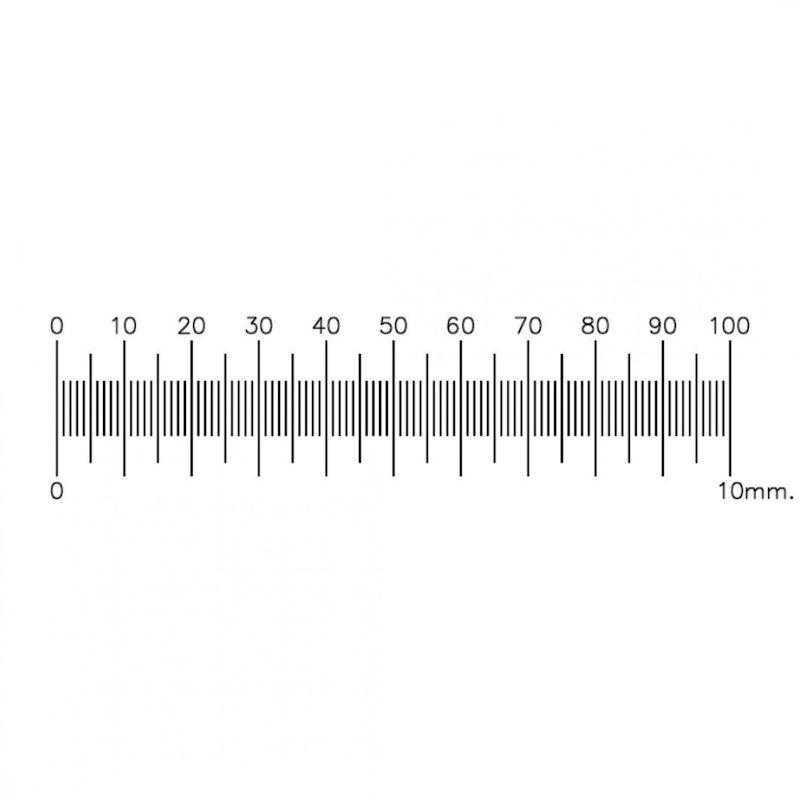

  • 10 mm length scale subdivided into 100 divisions (0.1 mm)
  • line thickness: 0.005 mm +/-0.001mm
  • scale length tolerance: +/-0.002 mm
  • divisional marker lengths: 2./1.6/0.8 mm
  • glass type and thickness: B270 1 mm thick
  • orientation: correct on top surface
  • black anodised aluminium slide
  • dimensions 76x25x1.5 mm
  • delivered in a plastic case
