Couting system CCA, 600g/0,01g, 60kg/10g, 400X300 mm

Dual scale

Couting system CCA, 600g/0,01g, 60kg/10g, 400X300 mm
€ 1,150.00 1,048.00 *Prices are exclusive of VAT
Manufacturer KERN
Article codeCCA 60K-5M

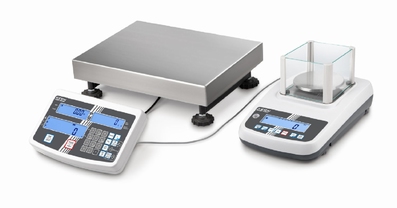

  • the highly accurate KERN counting system can replace a whole range of individual balances, efficiently and at a reasonable price
  • thanks to EC type approval [M] this counting system can also be used in verified applications, e.g. for order picking packaged items, etc.
  • the balances are connected to one another with an RS 232 Y-cable, which also allows you to connect an end unit, such as, for example, signal lamps, barcode scanners or printers (TCCA-A01-A, included in the scope of supply)

Reference scale EWJ 600-2M
  • this professional precision scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
  • concept of easy use: All primary functions have their own key on the keypad
  • automatic internal adjustment time-controlled every 2 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
  • weighing range: 600 g
  • readout: 0.01 g
  • linearity: ± 0.03 g
  • reproducibility: 0.01 g
  • minimum piece weight (normal/labo): 0.2/0.02 g
  • weighing plate (inox): 144x139 mm
  • overall dimensions WxDxH 320x350x125 mm
  • draft shield standard, weighing space W×D×H 134×128×80 mm
  • protective working cover included with delivery

Quantity scale IFS 60K-2M
  • the high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN . In this way even the smallest of parts can be counted in large volumes
  • tough industry standard suitable for use in harsh industrial applications
  • ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
  • three displays for total weight (verifiable), piece weight, total quantity
  • 100 item memories for master data, such as item number, PRE-TARE (container weight), reference quantity, refere. weight etc.
  • precise counting: The manual optimisation of reference weight gradually improves the average value of the piece weight
  • totalising of pieces when counting
  • printout with date and time
  • aluminium singlepoint load cell (1x3000e), protection against dust and water splashes IP65
  • weighing range: 60/30 kg
  • readout: 20/10 g
  • weighing plate (inox): 400x300 mm
  • net weight approx. 9.95 kg
  • protective working cover included with delivery

Option and accessories
  • signal lamp for visual support of weighing with tolerance range, ref CFS-A03
  • RS-232/WiFi adapter: high-quality adapter for the wireless connection of balances, force measuring devices etc. to an RS-232 interface to WLAN-enabled devices, such as tablets, laptops, Smartphones etc., ref YKI-03
  • RS-232/Ethernet adapter to connect force-measuring instruments to an IP-based Ethernet network, ref YKI-01
  • protective working cover for Reference scale EWJ, scope of delivery: 5 items, ref EWJ-A04S05
  • protective working cover for Quantity scale IFS, scope of delivery: 5 items, ref KFB-A02S05
  • for EWJ or IFS, rechargeable battery pack internal, operating time up to 18 h, charging time approx. 12 h, must be ordered at purchase, ref KFB-A01
General
  • backlit LCD display, digit height 20 mm
  • memory (PLU) for 100 items with additional text, reference weight and tare weight, e.g. of a container
  • precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
  • programmable using numerical key pad or an external PC: known reference weight, required reference quantity, pre-tare
  • audible Fill-to-target: target quantity or target weight can be programmed. When the target value is reached, a signal will sound + in option signal lamp with option CFS-A03
  • counting results memory: adds up all individual counting operations, result is shown in total weight and total pieces
  • PRE-TARE function for manual subtraction of a known container weight, which can be saved
  • adjusting program CAL: for quick setting up of the balance’s accuracy. External adjusting weight required
  • main adapter external 230 Vac / 12 Vdc - 500 mA
  • data interface RS232
  • permissible ambient temperature: 0°C / 40°C
  • warranty 3 years

Option & accessorie
  • DAkkS certificate (option)
  • rechargeable battery pack internal, operating time approx. 90 h, charging time approx.14 h, GAB-A04
  • signal lamp for visual support of checkweighing procedures, must be ordered at purchase, CFS-A03
  • Y cable for parallel connection of two terminal devices to the RS 232 interface on the balance as the signal lamp and a printer, CFS-A04
  • WLAN interface for wireless connection to networks and WLAN capable devices, such as tablets, laptops or Smartphones, must be ordered at purchase, CFS-A05
  • Software Balance Connection. For the direct transmission of balance data to Windows applications, SCD-4.0.
  • adapter RS232 to ethernet (YKI-01), bluetooth (YKI-02), WLAN (YKI-03), USB (AFH 12)
  • printer 911-013, YKN-01 or YKB-01N
  • protective working cover over keyboard/display/housing
