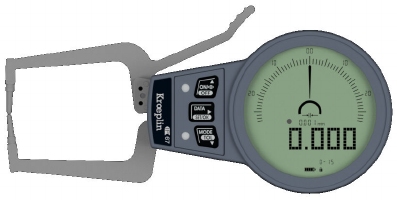

Electronic external gauge C015, 0~15 / 0,001 / 45 mm / Ø 1.5 mm

€ 501.00 *Prices are exclusive of VAT

Article code: C015

0 star(s) in 0 review(s) Write a review

measuring range: 0~15 mm
measuring range: 15 mm
mechanical stroke: 0~15 mm
adjustable resolution: 0.001 / 0.002 / 0.005 / 0.01 mm
max. permissible errors G: ± 0.010 mm
repeatability: 0.005 mm
measuring force: 1.3~5 N
measuring depth: Lmax = 45 mm

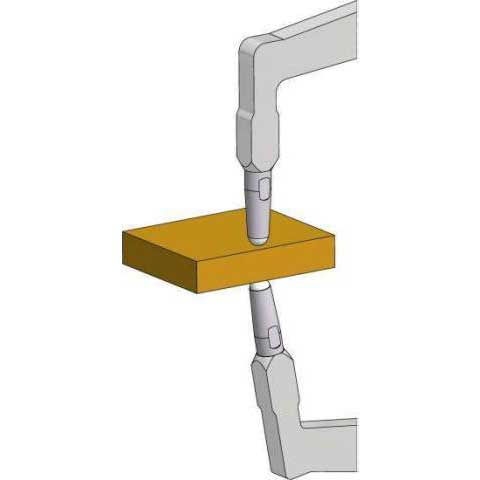

type of measuring contact: HM-ball Ø1.5 mm.

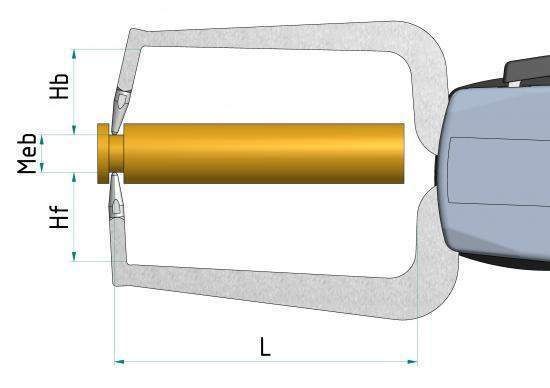

mMeasuring contact movable Hb / fixed Hf: 17/17 mm
functions:
* Zero / Absolute mode / Relative mode
* Min / Max / Hold
* Tolerance
* mm / inch
protection level: IP67

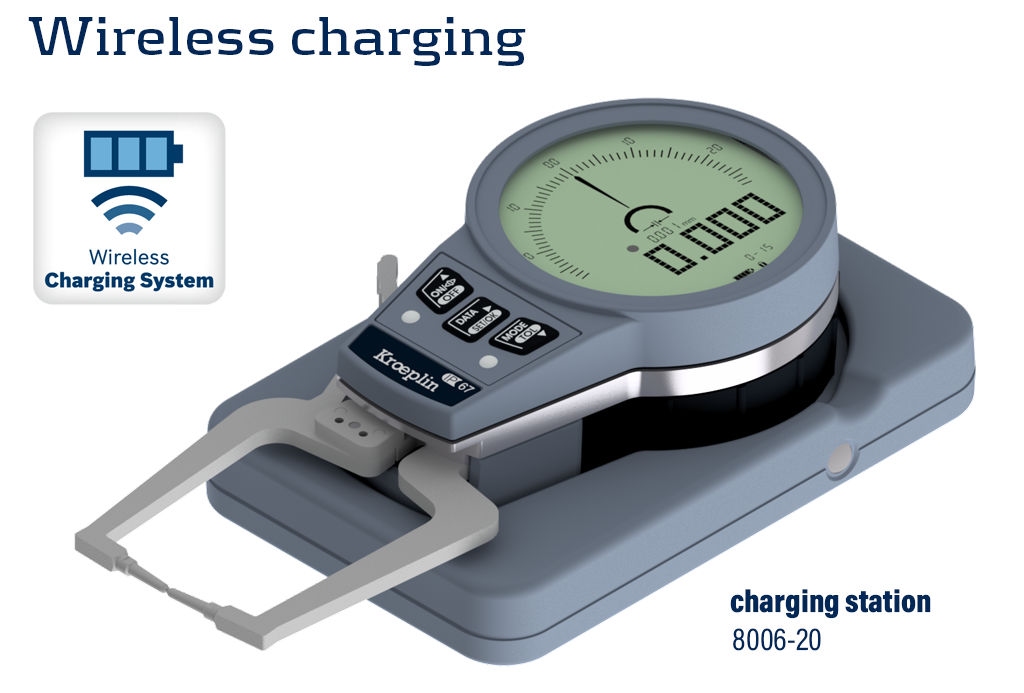

power supply: LiPo battery with inductive charging technology
data logger (100 measurement values)
reference temperature: 20°C
working temperature: -10~50°C
weight: 170 g
