Digital coating thickness gauge MiniTest 650 FN

Model with combined external probe FN

€ 984.00 *Prices are exclusive of VAT

Manufacturer: ElektroPhysik
Article code: 80-124-0201

0 star(s) in 0 review(s) Write a review

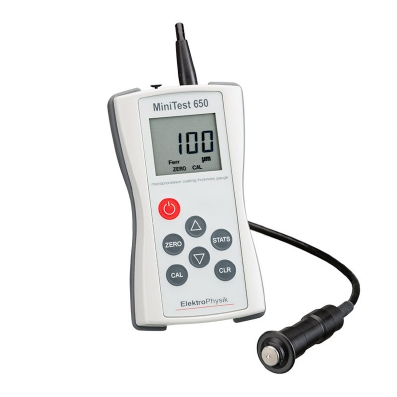

MiniTest 650 FN - combination ferrous & non-ferrous model with integrated sensor

Easy to use, this ergonomic and robust thickness gauge is suitable for the harsh environments of the anti-corrosion industry. Thanks to its exceptional reliability and longevity, the device best meets the needs of users in the automotive industry, metal construction, bridge construction, shipbuilding, etc.
The MiniTest 650 N allows the measurement of
* all non-magnetic coatings such as paints, enamels, chrome, zinc etc. on steel
* all coatings all insulating coatings on non-ferrous metals such as paints, anodized layers, ceramics on aluminum, copper, die-cast zinc, brass etc.
Operating on micro batteries, the MiniTest 650 is connected to its probe by a one-meter cable. Its large backlit screen makes it easy to read.

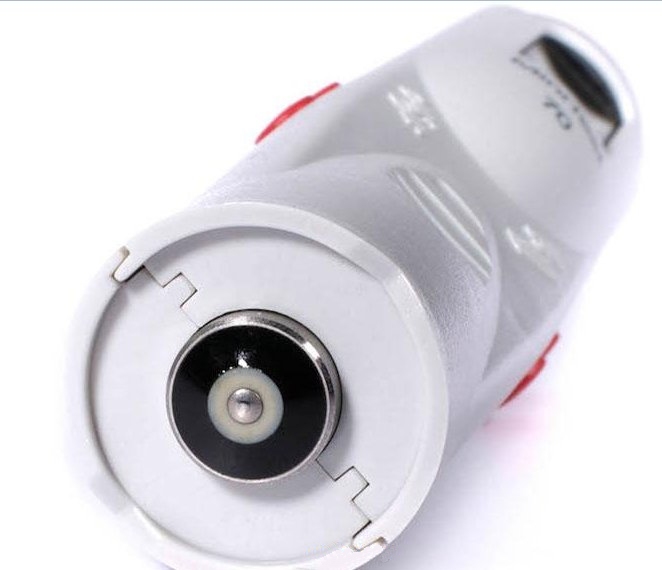

Its strong point: The new high wear-resistant tungsten carbide probe pole allows almost unlimited longevity under normal conditions. Equipped with rubber reinforcement, the device's casing provides optimal shock-proof protection.
Via the USB interface, the device connects to a computer for online measurements or display of statistics.

Features

excellent reproducibility
for precise and rapid measurements of non-magnetic coatings on ferrous metals or for insulating coatings on conductive metals
particularity of the combined probe: it automatically recognizes the support and adapts the appropriate measuring principle according to the identified support: either magnetic induction or eddy currents.
proven measurement methods
statistics function
1 or 2 point calibration for measurement on flat and curved surfaces and better accuracy on various materials

Specifications

measuring range: 0~2000 µm
resolution: 1 µm
measuring principle: magnetic induction
accuracy: ± (2 μm + 2 % of reading)
minimum curvature radius convex: 5 mm
minimum curvature radius concave: 25 mm
minimum measuring area: Ø 30 mm
minimum substrate thickness: F: 0.5 mm / N: 0.05 mm
measuring units: metric/imperial switchable
calibration modes: factory calibration, one-point calibration, two-point calibration
memory: up to 9999 measurements max
statistics: n, x—, s, Min, Max
interface: USB
operating temperature range: device 0°C~+50°C, probe -10°C~+70°C
power supply: 3 x AAA battery for > 10,000 measurements
international standards: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
dimensions: housing 70x122x32 mm, probe Ø15x62 mm
weight incl. battery: approx.225 g

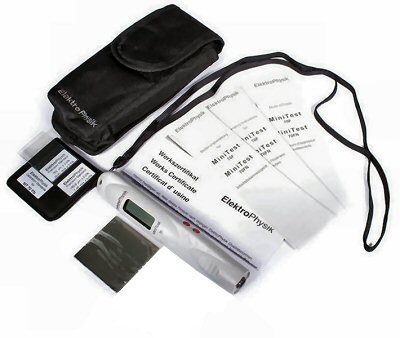

Standard delivery
