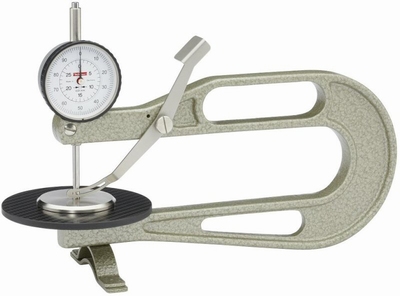

Analogue thickness gauge 9073-2, 28/0.01/200 mm

€ 944.00 *Prices are exclusive of VAT

Article code: 20304

0 star(s) in 0 review(s) Write a review

This dial thickness gauge is used exclusively to measure the thickness of fleece according to part 5.1 of the standard DIN EN ISO 9073/2 (edition 1997/02). It is equipped with special contact points and has a special contact force to meet DIN EN ISO 9073/2 requirements.
The concentric millimeter pointer allows easy and safe reading of the dial thickness gauge.

Basic technical specification

range: 28.5 mm
range per revolution: 1 mm
reading: 0,01 mm
depth of the jaw: 200 mm
starting pressure approx. 0,5 kPa (reading 0 mm)
final pressure approx. 0,56 kPa (reading 20 mm)

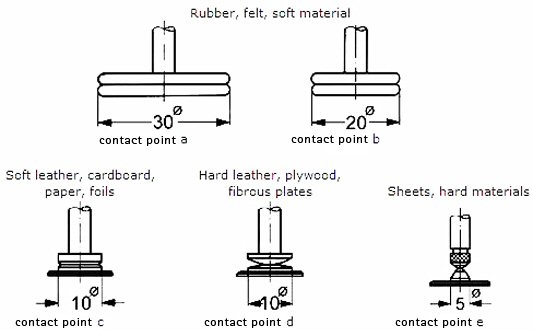

upper feeler Ø 56,5 mm (metal)
lower feeler Ø 108 mm (carbon)
bezel: Ø58 mm
contact points normally closed by earth gravitational field, no spring for lifting lever. Measurement is done at ± constant pressure
rotating dial with ring black steel and unbreakable glass
accuracy: according to manufacturing standard
weight: 875 g
retractable foot for use on table
delivered in cardboard box
